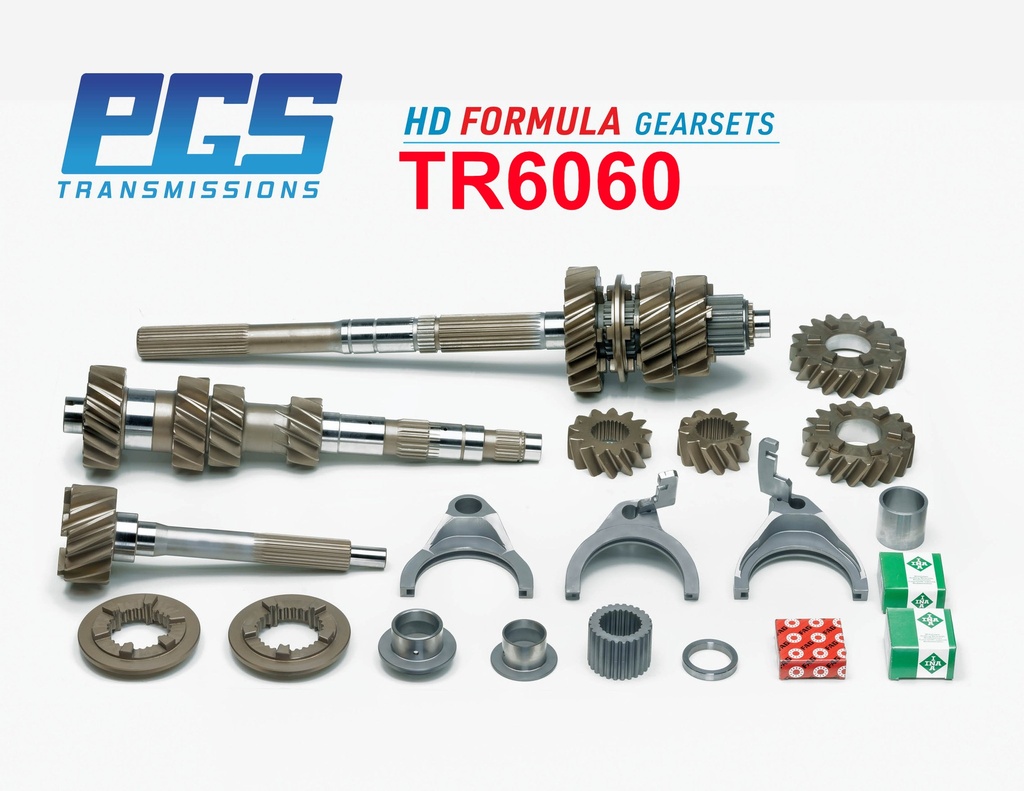

PGS Formula HD Dogbox Gearset - Corvette TR6060 Transmission
Unlike faceplated gearsets where only 1-4 are dog engagement, this is a full 6 speed dog enagegment gearset.
Super robust gearset, there is no rating per-se for this in horsepower/torque but we've seen over 2000 torque pushed through it in a big liter V10 application.
This mirror-ground tooth helical gearset is being used widely in worlds most powerful racing and street cars. Low noise level and extremely smooth in gear change.
Specifications
| Gear Ratios | 4-SPEED 1.98, 1.54, 1.21, 1.0, HANDCUFF 5/6 or 4-SPEED 2.38, 1.7, 1.29, 1.0, HANDCUFF 5/6 or 4-SPEED 2.61, 1.74, 1.28, 1.0, HANDCUFF 5/6 or 6-SPEED 1.98, 1.54, 1.21, 1.0, 0.82, 0.66 or 6-SPEED 2.38, 1.7, 1.29, 1.0, 0.82, 0.66 or 6-SPEED 2.61, 1.74, 1.28, 1.0, 0.82, 0.66 |
