MKIV Supra T56 Magnum-F 6-speed manual swap kit

https://www.grannasracing.com/web/image/product.template/118/image_1920?unique=f89dba6

$ 899.95 899.95 USD $ 899.95

$ 899.95

Not Available For Sale

  • Bellhousing
  • Transmission
  • Transmission Wiring
  • Driveshaft - MKIV
  • Clutch
  • Hydraulic Release Bearing
  • Flywheel Bolts
  • Clutch Master Cylinder (REQUIRED!)
  • Clutch Line
  • Billet Alignment Tool
  • Index Plate (REQUIRED FOR WARRANTY!)
  • Shift Knob
  • Shift Boot Support Cone
  • Tunnel sealing cover
  • Clutch Pedal
  • Manual Brake Pedal
  • Shift Boot (interior panel)

This combination does not exist.

Contact Us
Transmission Kit MK4

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Transmission Options

GR700

  • Most popular option
  • Factory 700 ft lb rated Tremec T56 Magnum
  • We have had great success with cars making 1000HP or more in street car applications.
  • Super Strong at a Great Value
  •  TREMEC 1 year warranty

These transmissions are freakishly strong! Amazing bang for the buck!

GR1200

​

  • Built Synchronized H-Pattern trans
  • Normally recommended for cars making over 1100HP
  • Billet Front Plate with pump
  • Spray bar for gearset cooling and lubrication
  • REM ISF Finished gear, shafts, rails
  • Every transmission is dyno tested. Reduced gear noise
  • "Grannas" Orange Cerakote for heat dissipation
  • Best Synchronizers available. Carbon 1-2 and Hybrid for 3-6 and reverse.
  • Maximum strength while remaining streetable

Keep the synchros, keep it fun, keep it streetable!

ATLAS

​

  • 6-speed Billet Gearset H-Pattern
  • The strongest possible option. Tested to 2000 ft/lbs in V10 applications.
  • Billet Front Plate with pump
  • Spray bar for gearset cooling and lubrication
  • Dog Engagement on ALL GEARS
  • Also available with handcuffed 5th/6th in a 4-speed setup for drag racing
  • Custom input shaft options. Added length or stronger input spline
  • Multiple gear ratios. Super tall, tight split options for drag racing.

The strongest H-Pattern transmission available.

Clutch Options

Single Disc

Stage 4 Single disc clutch. Recommended for street car duty only. No Hoonigan stuff, no drifting, no burnouts, no rev-limiter action.

600 ft lbs torque capacity

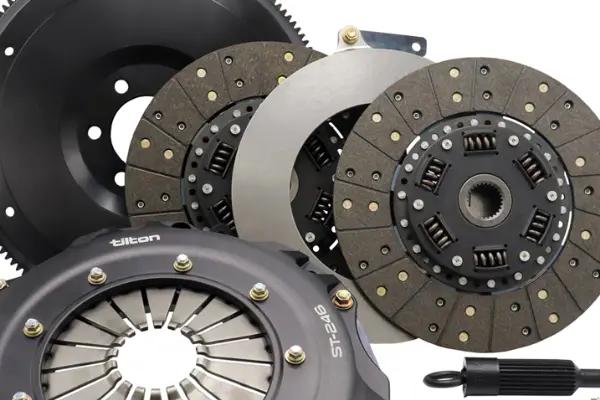

Tilton ST246

Our best selling twin disc. The quietest, smoothest engaging, all around best clutch we sell. Organic SPRUNG discs. Nothing else like it out there! Full billet construction with billet flywheel.

900 ft lbs torque capacity

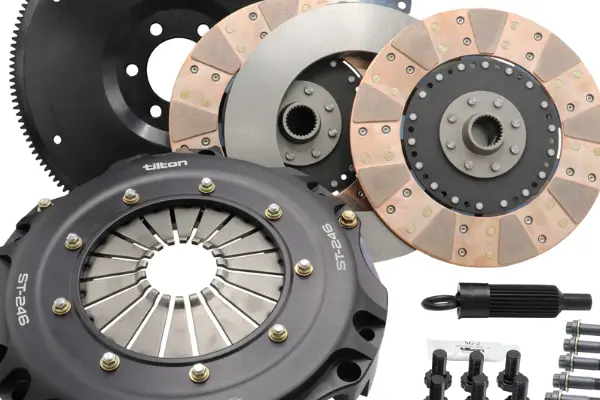

Tilton ST246 "HD"

The strongest and best driving super duty clutch we sell yet still has great drivability. Unsprung cerametallic discs. Full billet construction with billet flywheel.

1300+ ft lbs torque capacity

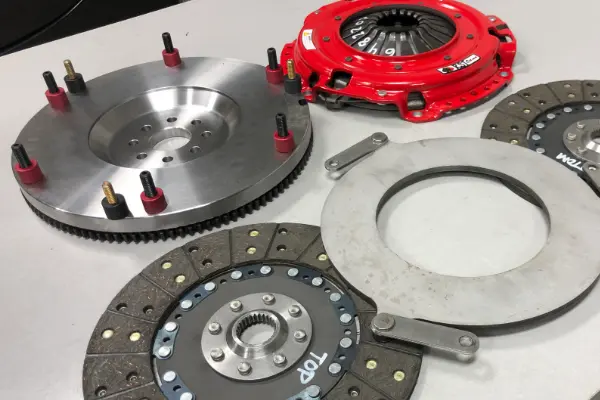

Mcleod RST

Great clutch for street cars making around 650HP. Includes billet flywheel. Unsprung Organic discs. Stamped steel pressure plate.

650 ft lbs torque capacity

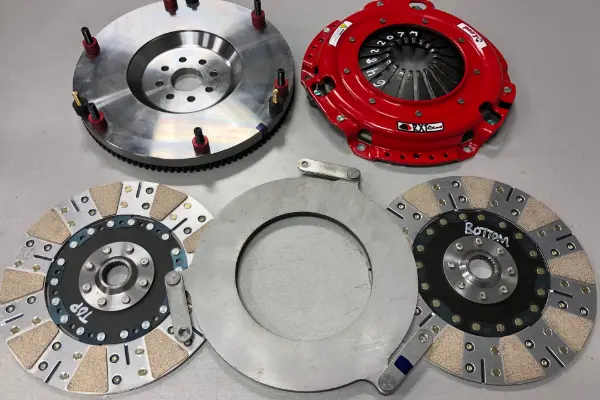

Mcleod RXT

Great clutch for street/strip cars making around 800-850HP. Includes billet flywheel. Unsprung Cerametallic discs. Stamped steel pressure plate.

800 ft lbs torque capacity

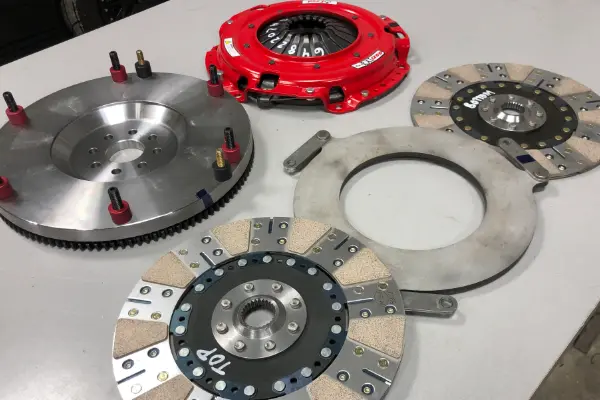

Mcleod RXT 1200

Great clutch for street/strip cars making around 850+HP. Includes billet flywheel. Unsprung Cerametallic discs. Stamped steel pressure plate.

1000 ft lbs torque capacity


Fully Customizable. Build the kit the way YOU want it!

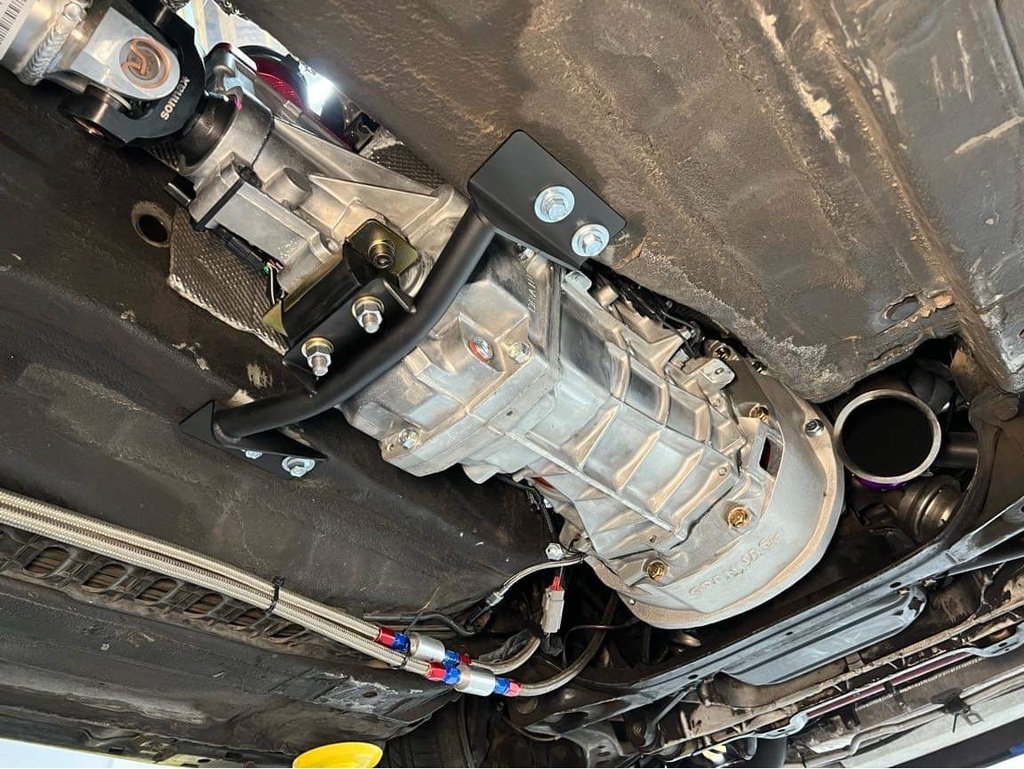

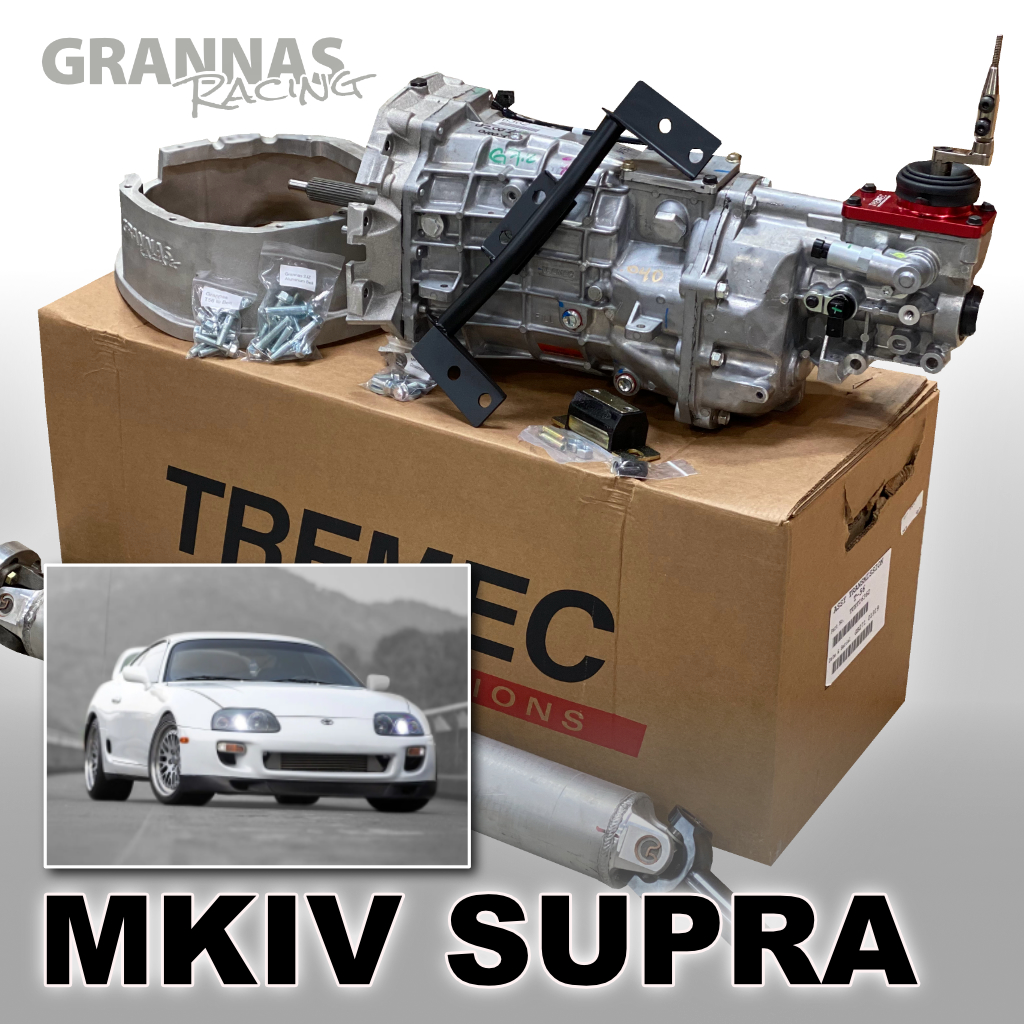

This is a full bolt in T56 Magnum-F swap kit for the MKIV Supra. This is perfectly setup for a 1993-1998 Toyota Supra. The shifter sits perfectly in the factory location. The factory manual tunnel will not need any modifications other than slight hammer tapping at the reverse lockout area and the front of the shifter hole area. If you are auto-to-manual swapping you will need to trim the factory auto tunnel.

Driveshaft and clutch is optional, but recommended to make this an easy bolt-in experience.

If you add up the cost on all these parts, you will see that I am competitive with big name speed shops like Summit and Jegs. But, the difference is... I put it all together in a one-stop-shop package and provide you with the little details they don't... like every nut and bolt needed, and actual product knowledge and support to go with it, something those big box stores will never have! We are doing a lot more than just selling you a box of parts!

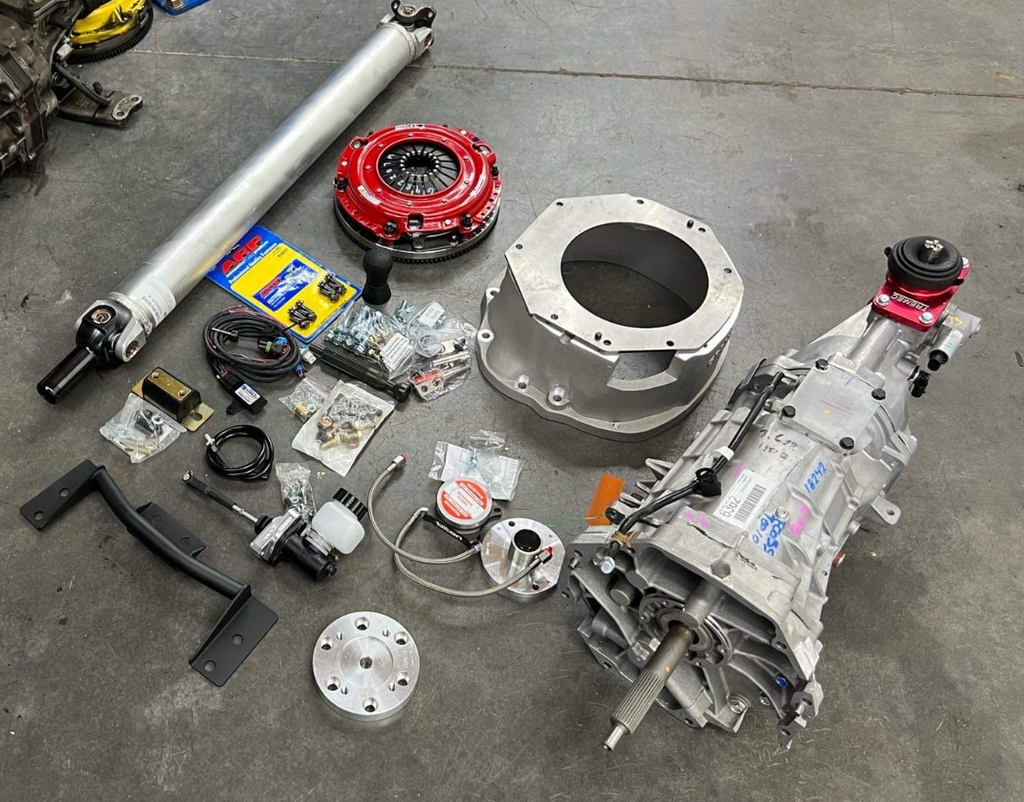

Base Kit includes:

  • Lightweight 4130 Tubular Chromoly Crossmember

  • Grannas Rubber NVH dampening transmission mount

  • Chassis specific shifter (if offset shifter required, we install and set you up with the proper length offset)

  • Shifter Handle (we set you up with the right size handle to closest mimic the stock shifter height)

  • High Density foam packed for safe delivery to your doorstep without the need for freight trucks

  • With the T56 release bearing setups an upgraded master is required. If your buying the clutch from us, we will make sure to set you up with the proper size clutch master cylinder.

  • Driveshaft is optional, available in carbon fiber or aluminum

We can supply you with all the parts you need to convert your factory automatic to a manual. We even reproduce parts where Toyota has discontinued them!

In the kit builder above you can select which parts you need for your conversion.

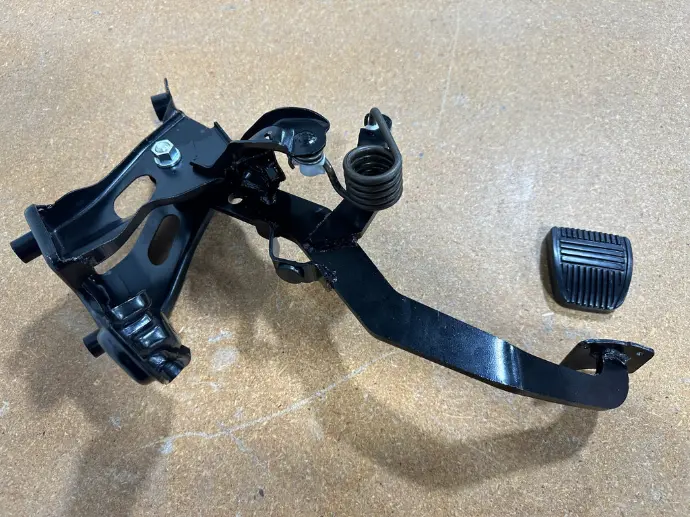

  • Clutch Pedal

  • Brake Pedal

  • Interior Panel / Shift Boot

  • Tunnel Conversion Cover

We offer shifters, shift knobs, shift handles, and many other small detail items to help make your swap turn out exactly the way you want it, with your finishing touches.

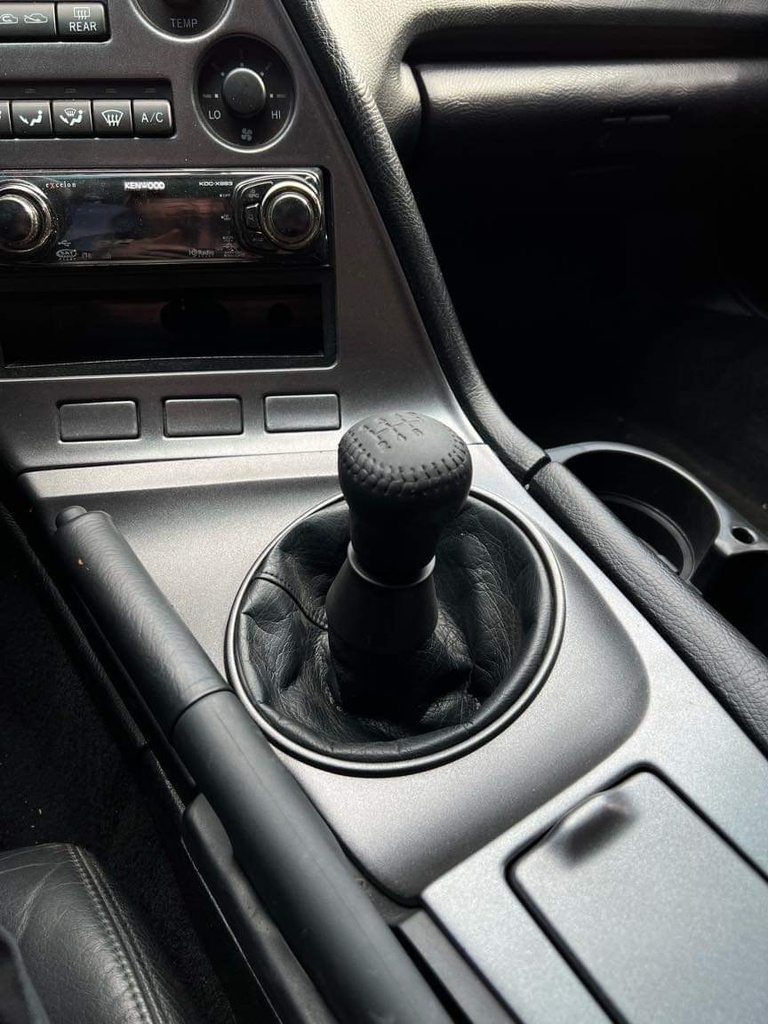

For example, in this MKIV supra pictured, the T56 is unknown to the naked eye, everything looks factory. That is the goal, to make it look like a factory car but hold up to high horsepower engine setups.

Our billet alignment tool is a must for multi-disc clutch setups. Save struggle at install time by using this tool.

Our index plate ensures a long, trouble-free life with your brand new transmission. It also helps to ensure less noise and is a required step to keep your transmission's factory warranty!


Back in 2016, I ran into an issue. I loved stick shift racing... but the factory Toyota 6-speed V160 parts became discontinued. I couldn't rebuild my factory transmission... So I had to find a solution!

I started looking for alternatives...I found the TREMEC T56 Magnum, and saw quite a few big power domestic cars were using it. But at that time no import guys were using it. I decided the T56 Magnum was the best choice for me. When I put that first T56 in my car... I was ridiculed by the Supra crowd...They said "why would you put a Camaro transmission in your supra". But man, how times have changed! Over the years building these kits, and all the improvements I made... It's now easy to see that my GR700 kit is the most popular manual transmission option. It is the now regarded as the "go to" transmission kit for people that want a fun car to drive with high horsepower capacity and lasting durability!

What Fluid Should I run in my transmission? And what is the T56 fluid capacity?

I recommend different fluids based on several factors. You can read my article on this subject and best decide what you want to run in your transmission

T56 Fluid Recommendations

Do I need to index my cast aluminum bellhousing?

Yes, it is very important for reliability. While initially I was hoping this would not be required, we found that the OEM engine blocks are not super consistent in machine tolerances. To keep your transmission covered under TREMEC's warranty we highly recommend doing the index process.

Do I Need to Index My Bellhousing

What is better, the close or wide ratio T56 Magnum?

That is really a question for you to decide, but I can tell you that I sell 99 close ratio tranmissions to every 1 wide. Read my article for why it is that much more popular.

Close vs Wide Ratio T56 Magnum

What is hydrualic release bearing air gap I hear about, and how do i set it up?

One of the most important parts of your install is setting the air gap. Setting it up improperly can lead clutch or hydraulic failures. Read more about this and avoid issues!

Clutch Hydraulics Tech

What is the final drive or rear gear ratio to match up to my T56 magnum?

The sweet-spot range final drive gearing for most T56 setups is from 3.7-4.30 usually. This depends a lot on your driving style, your horsepower, and your rear tire height.

Choosing a rear gear to match the T56

Where can I find install directions for the transmission swap kit?

While I do not provide print-out directions, I have done a complete video series on an auto-to-manual swap on a MKIV Supra. This covers all install processes and is universal when it comes to installing these transmissions in all chassis.

Install on Already a Manual car

10 Part Video - Auto to Manual Swap

Which Transmission will best fit my chassis? Magnum, Magnum-F or Magnum XL?

If you are swapping into a car where I do not build a complete kit already, you can use one of our universal kits for the Chevy LS, Ford Coyote, Toyota 2JZ/1JZ, Honda K-series, Rotary 13B/20B, Toyota UZ V8, and Nissan VG30. Then use the options to select which trans will fit based on a measurement you will take from the back of the engine block to the center of your shifter hole in the tunnel. It's important to get the transmission correct, because its heavy and expensive to ship back if its not the best fit.

Universal Transmission Kits

Should I choose the wiring pigtail kit or the T56 wiring harness for my build?

The shortest and easiest answer is that if you have a capable stand-alone engine management system (Haltech, Motec, etc etc) and you have available inputs and outputs then you should just get the pigtails. You will need to use your ECU to convert the speed signal from the T56 pulses, to your stock speedometer pulses. And then use the speed input to unlock your reverse

If you are on a stock ECU or an ECU where you do not have any extra/available inputs/outputs then you should get the harness. The harness is nice, because its built in module will auto-unlock the reverse solenoid when it detects the transmission speed is less than 4 mph. It also provides provisions for the reverse lights and keeps all transmission related wiring in a clean and simple installation package.

T56 Wiring: Pigtail Kit vs Harness

Will my current driveshaft fit? How do I measure for a new driveshaft? And other driveshaft questions...

The T56 normally is a different overall length than whatever transmission you have in your car currently, so in most situations (other than a f-body camaro basically) you will likely need a new driveshaft or will need to modify your driveshaft.

For all driveshaft related tech questions visit this page where I will try to answer all those questions

Driveshaft Tech


The Original.

It all started with a goal to be different than other shops. Keep it small, keep it honest. And continue to improve products every day.

OEM Quality Cast Bellhousings

Our cast bellhousings exceed OEM standards. Durable, quality construction to last a lifetime.

Lightweight but Strong

All our crossmembers are built with 4130 chromoly steel. The same stuff used in race car chassis.

Dampened where possible

The rubber T56 mount is a simple but needed part, everything else out there was too harsh.

​Always Improving.​

​When I tried a product I didn't like... I knew I could build it better myself... So I did. Build the best stuff out there, and you don't need advertising!

The best clutch options

I am always looking for the next best thing. This is very apparent in the clutch department.

Auto to Manual parts

If available, I provide the auto to manual parts like clutch pedal, brake pedal, interior/shift boot.

High Quality Driveshafts

Quality carbon fiber and aluminum shafts built to fit your rear end of choice!

Quality Control

We build the parts. We test the parts. We support the parts.

 All in one place

We pride ourselves in supplying 100% complete kits. The best, easy to install kit. Great fitment! No missing bolts.

 Perfected Parts

Years of experience and improvements give you the best possible kit.


Durability Tested TO THE LIMIT.

If it can survive this... surely it will survive your street car.

 Dream it. Build it. Sell it.

Specifications

Bellhousing I already have a bellhousing or Grannas Cast Aluminum with hardware kit (street car) or Quicktime SFI-Spec Steel with hardware kit (race car)
Transmission No Transmission or Close Ratio GM Magnum-F (TUET16362) or Wide Ratio GM Magnum-F (TUET17638) or Hybrid Ratio GM Magnum-F (TUET16363)
Transmission Wiring I do not need any wiring kit or Wiring Pigtail Kit (standalone engine management cars) or Bluetooth Wiring harness (stock ECU, stock speedometer)
Driveshaft - MKIV No Driveshaft or Aluminum Magnum-F to TT Auto or Non-Turbo rear (200mm) or Carbon Fiber Magnum-F to TT Auto or Non-Turbo rear (200mm) or Aluminum Magnum-F to 6speed rear (220mm BIG DIFF) or Carbon Fiber Magnum-F to 6speed rear (220mm BIG DIFF) or Aluminum Magnum-F to Ford 8.8" IRS or Carbon Fiber Magnum-F to Ford 8.8" IRS or Aluminum Magnum-F to Ford 9" IRS or Carbon Fiber Magnum-F to Ford 9" IRS
Clutch No Clutch or Mcleod Single Disc Stage 4 or Mcleod RST Twin Disc or Mcleod RXT Twin Disc or Mcleod RXT 1200 Twin Disc or Tilton ST246 Twin (Organic) or Tilton ST246 "HD" Twin (cerametallic)
Hydraulic Release Bearing I already have a release bearing or Tilton Release Bearing for T56 / T56 Magnum
Flywheel Bolts No Flywheel Bolts or ARP Flywheel Bolts
Clutch Master Cylinder (REQUIRED!) I already have an upgraded clutch master or Include LHD Tilton clutch master cylinder kit or Include RHD Tilton clutch master cylinder kit
Clutch Line I already have a clutch line or Include braided clutch line with fittings
Billet Alignment Tool No Alignment Tool or T56 Billet Alignment Tool
Index Plate (REQUIRED FOR WARRANTY!) No index plate or Include bellhousing index plate
Shift Knob No shift knob or Grannas Leather 6-speed knob or Grannas Black 6-speed ball or Grannas Brushed Aluminum 6-speed ball or TREMEC Black 6-speed ball or TREMEC White 6-speed ball or TREMEC Polished 6-speed ball
Shift Boot Support Cone I don't need the cone or Include shift boot support cone
Tunnel sealing cover No Cover Needed or My car is already manual, i only need the rubber seal boot or Include MKIV Supra Tunnel Cover (for auto to manual swap cars)
Clutch Pedal No Clutch Pedal or Include MKIV Supra Clutch Pedal (LHD) or Include MKIV Supra Clutch Pedal (RHD)
Manual Brake Pedal No Brake Pedal or Include MKIV Supra Brake Pedal (LHD) or Include MKIV Supra Brake Pedal (RHD)
Shift Boot (interior panel) No Shift Boot Needed or Include MKIV Supra Interior Shift Boot (LHD) or Include MKIV Supra Interior Shift Boot (RHD)
